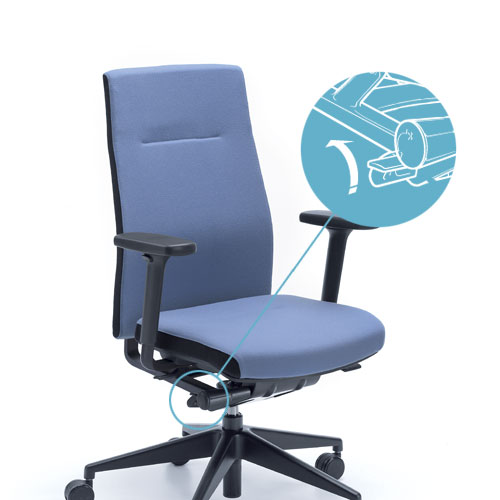

Lowering the seat:
1. Sit down on the seat.
2. Pull the lever upwards (seat will drop slowly).
3. Release the lever at the desired and lock the position.
Raising the seat:
1. Stand up.
2. Pull the lever upwards (seat will raise slowly)
3. Release the lever at the desired and lock the position.

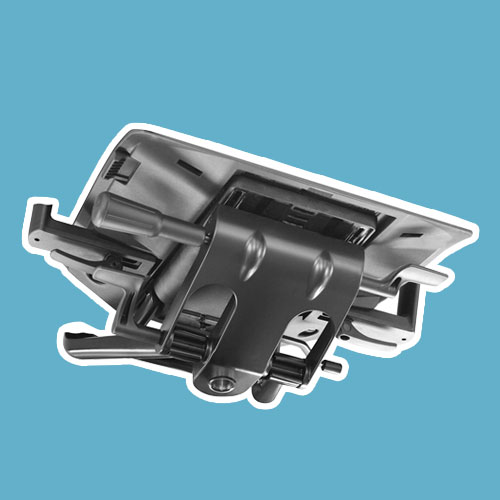

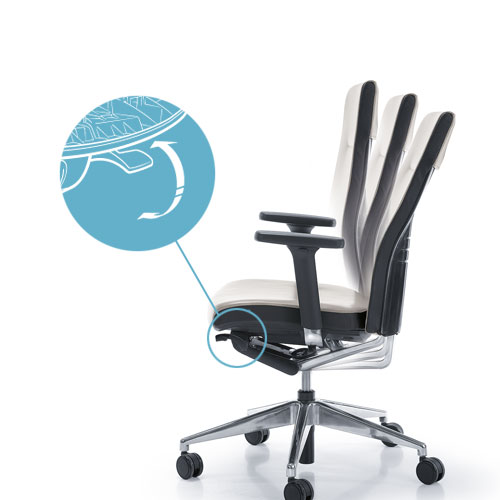

Adjustment of the angle of the backrest and the seat:
1. Start the SYNCHRO mechanism by turning
the lever upwards. Synchronous reclining
of the seat with the backrest is possible
with the lever in the upper position.
2. Lean against the backrest until it reaches
definite inclination.
3. Turn the lever down to adjust the backrest
into desired position.

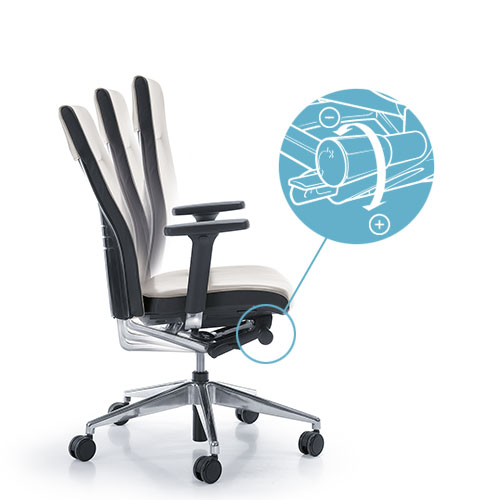

You will decrease the backrest resisting
force by unscrewing the bolt - adjusting
the chair to persons weighting less.
You will increase the backrest resisting
force by tightening the bolt - adjusting
the chair for the persons weighting more.

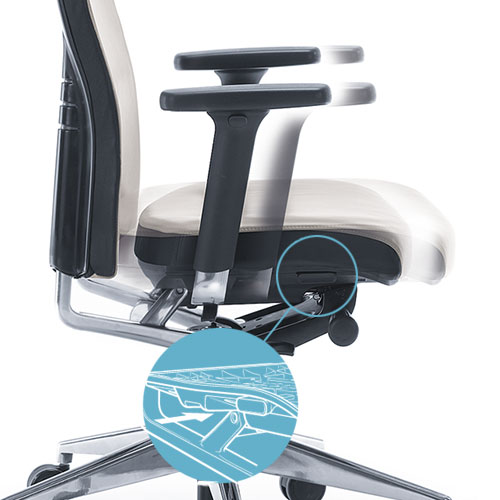

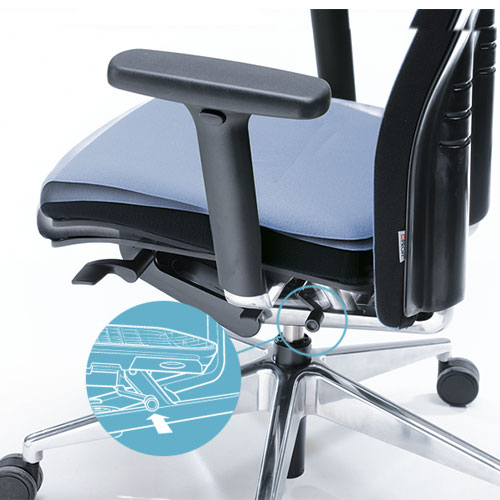

1 Press the button under the seat.
2.
Holding the button pressed adjust
the seat to the desired position.
3.
Release the button and mechanism will lock in.
Note! It is possible to adjust the depth of the seat only in SL models.
1. Stand up.
2. Push the lever under the seat.
Seat tilts 3° forwards.
Note! It is possible to adjust additional seat angle only in SL models.

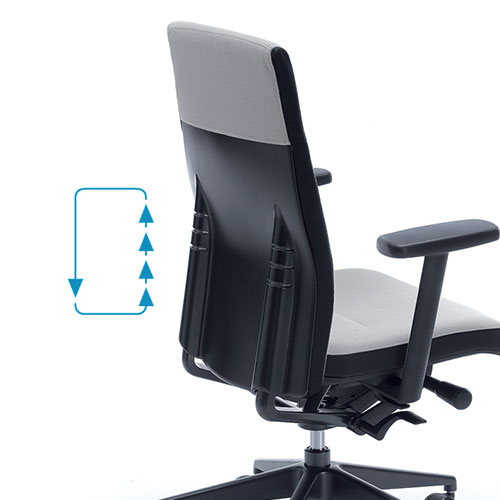

Raising the backrest:
1. Take hold of the backrest with both
hands and gently move it up.
2. Release the backrest
in the chosen position.
Lowering the backrest:
1. Take hold of the backrest with both
hands, raise it up to a maximum height - backrest will fall to the lowest position.
2. Holding the backrest with both hands
adjust it to the chosen position..

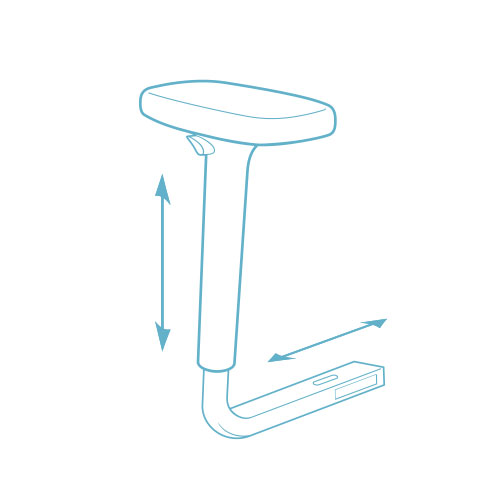

Height adjustable armrest
(range 100 mm)
with span adjustment
(range 35 mm on each side).
Colour of armrest frame:
black, metallic, chrome.

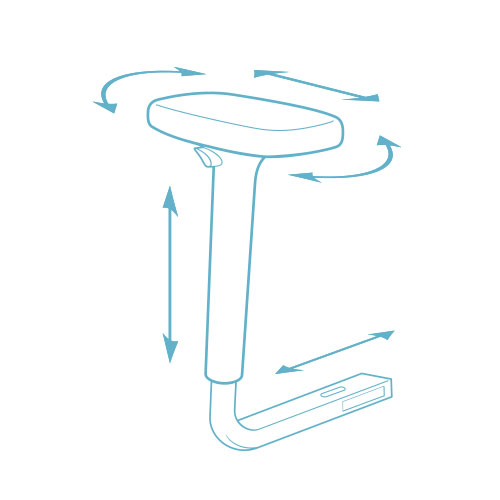

Height adjustable armrest
(range 100 mm)
with span adjustment
(range 35 mm on each side),
sliding pad (range +/- 30 mm)
with pivot option (+/- 30° ).
Colour of armrest frame:
black, metallic, chrome.

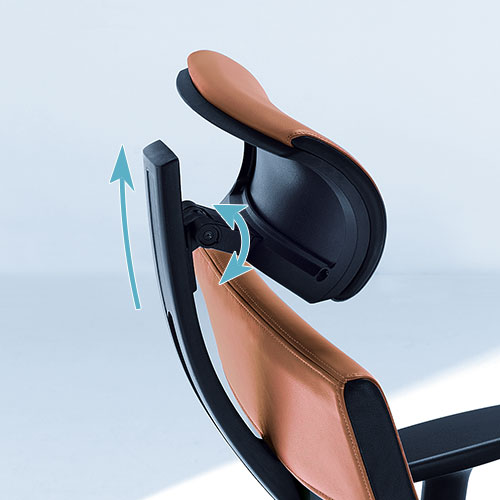

Made of high quality plastics, upholstered with leather or fabric. In order to increase comfort of the user, headrest is fixed to the backrest by adjustable connection.
